Smart Ways to Hide an Outdoor AC Unit and Keep It Breathing
Hiding an outdoor AC unit for shade savings? A Florida field study measured under 3%, so plan for looks and keep the top and service side clear.
Table of Contents
Can you hide an outdoor AC unit without hurting it?
Yes, if the unit can still breathe and a technician can still reach it. Your outdoor condenser pulls air through its coil and blows heat out the top.
Three rules keep a hidden unit healthy:
- Open sides: lattice, louvers or plants, never a solid wall.
- Open top: no roof, deck or overhang above the fan.
- Reachable service side: access panel and disconnect stay clear.
Planting? Jump to the plants section. Building? Go to fences and screens. Renting? Use movable planters and ask your landlord first. Still choosing equipment? Start with how central AC and heat pump systems work.
ℹ️ Safety Note: Your condenser connects to high-voltage wiring and refrigerant lines. Don’t move the unit, its disconnect or its wiring, and contact 811 before digging. Hire a licensed HVAC contractor or electrician for anything touching the equipment, and follow local code.

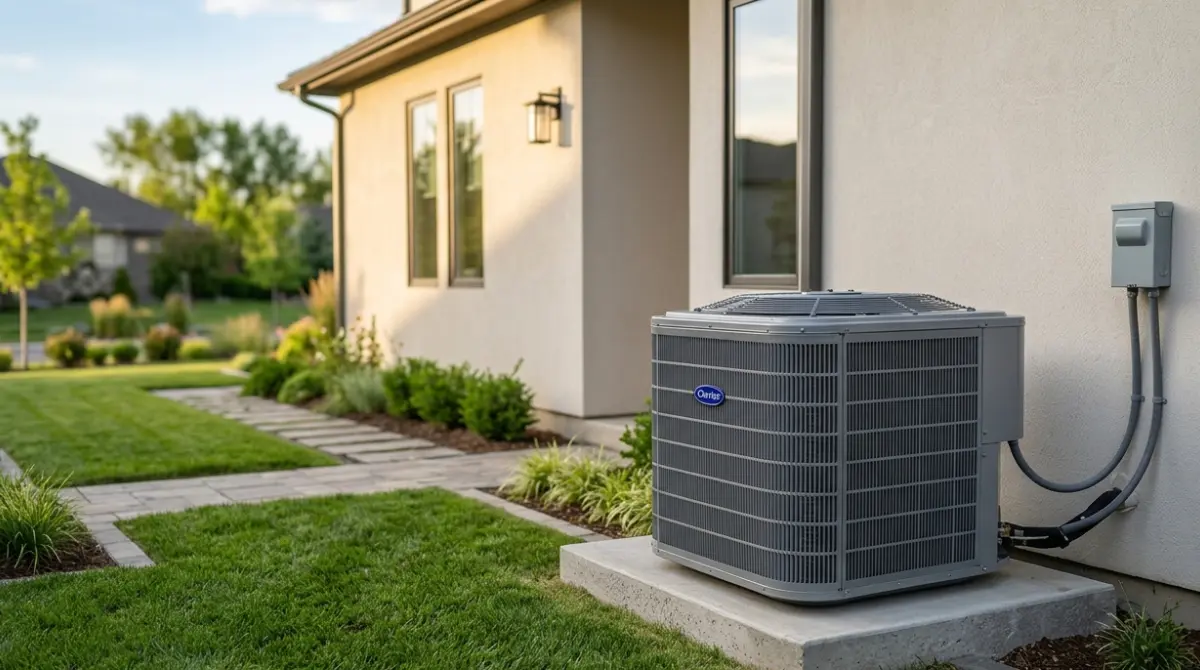

How much clearance does an outdoor AC unit need?
At least 2 feet of open space is the baseline; your model’s manual sets the exact numbers.
The 2-foot baseline
DOE recommends trimming foliage back at least 2 feet for adequate airflow, in its air conditioner maintenance guidance.
Clearances by brand (from current manuals)
| Manual (date) | Service side | Other sides | Above | Key Detail |
|---|---|---|---|---|
| Lennox SL22KLV (June 2025) | 30 in | 36, 12, 6 in | 48 in | 24 in between units |
| Trane 5TTR4 (Oct. 2024) | 3 ft | 12 in | 5 ft | Keep roof runoff off |
| Goodman GLXS (Dec. 2024) | Keep open | See diagram | 60 in under any obstruction | Ask dealer before fencing |
📊 Tested / Spec: From each brand’s published installation instructions, not our testing. Numbers vary by model, so confirm yours.
Find your model’s installation manual
The model number is on the condenser’s data plate; our guide to reading your HVAC unit’s data plate shows where. Search the brand’s site for that model’s installation instructions.
Does shading your AC unit actually save energy?
A little, at best. DOE says shade can raise efficiency up to 10%, but field data shows much less.
What DOE says
DOE’s landscaping guide credits shading with that 10% figure, which is why many people plant tightly around condensers.
What a field test measured
Florida Solar Energy Center researchers shaded condensers at three Florida homes. Their condenser shading study found savings under 3% and warned that blocked airflow could outweigh them. At one home, cooling energy use rose over 15% after planting.
🔍 Why It Works: A condenser moves far more air than a small shady pocket holds, so shade barely cools its intake. Crowd the exhaust, and hot air recirculation feeds warm air back in.
The safer way to get shade benefits
The 1996 study favored an open spot on a home’s shaded north side over plants hugging the unit.
Best plants to hide an AC unit, and how far back to plant
Space plants for full-grown size.
Plant for mature width, not nursery size
Plant each shrub’s center 2 feet plus half its mature width from the cabinet. A shrub tagged 4 feet wide goes 4 feet out.
Low-litter picks vs. plants to avoid
Pick evergreen shrubs or upright grasses rated for your USDA zone. Skip overhead branches; Lennox tells owners to clear leaves and debris that restrict airflow.
Pets and kids: check before you buy
ASPCA lists boxwood as toxic to dogs and cats, and camellia as non-toxic. Check each plant on ASPCA’s toxic and non-toxic plants list.
⚠️ Watch Out: If a pet chews an unknown plant, call your vet or ASPCA Poison Control at (888) 426-4435.
AC unit fence and screen ideas that still let it breathe

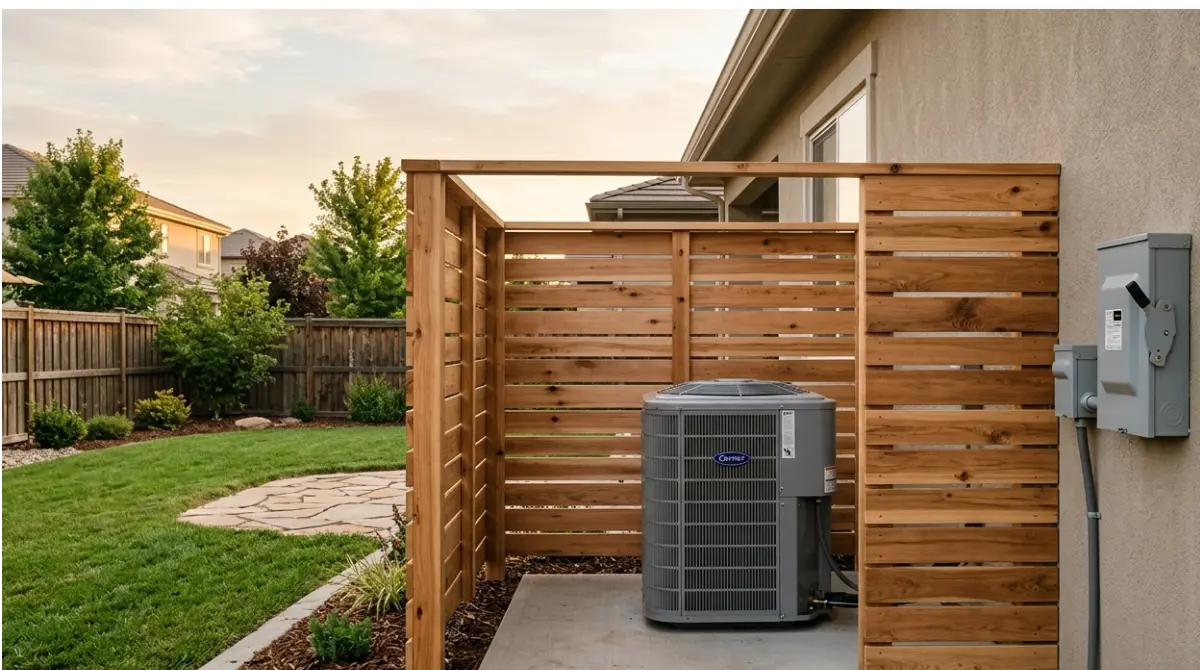

An open-slat screen on up to three sides hides the unit while air flows through.
| Option | Airflow | Digging? | Best For |
|---|---|---|---|
| Louvered screen kit | Open slats | No-dig kits exist | Quick installs |
| Lattice on posts | Open grid | Yes | Budget DIY |
| Solid fence or wall | Blocked | — | Avoid |
Louvered and lattice screens
Keep screens 2 feet back, or farther if your manual says so. Leave the top open and never fasten anything to the unit.
No-dig kits vs. posts (call 811 first)
811 is free and asks for a few business days’ notice, fences included. Find your state’s 811 center first.
Build in a removable service panel
Make the service-side panel hinged or lift-out.
✅ Do This: Goodman says to talk with your dealer before fencing near the unit. Ask your HVAC contractor which side they service from.
Keep the service panel and disconnect box reachable
Never block the box a technician uses to cut power.
What the disconnect is and why it needs space
The electrical disconnect is the switch box near your condenser. One California city’s permit handout, citing the electrical code, requires 36 inches clear in front across a 30-inch width, and advises against placing it behind the condenser.
What to ask your electrician or HVAC tech
Don’t move the disconnect or wiring yourself; local code decides.
✅ Do This: Ask a licensed electrician whether your disconnect meets local working-space rules. See how to choose an HVAC contractor for confirming service access.
Common mistakes that choke airflow, and how to fix them
Three setups cause most problems.
Roofs, decks and overhangs
Trane wants 5 feet open above; Goodman requires 60 inches under any obstruction. Remove the roof, or ask a contractor about relocating.
Covers left on in summer
Never run it covered. Goodman wants dealer approval and breathable fabric for any winter cover.
Clippings, leaves and dryer vents
DOE names dryer vents, leaves and mowers as debris sources. Blow clippings away and never aim a dryer vent at the unit.
Questions about hiding an outdoor AC unit
1. How far should plants be from an outdoor AC unit?
Keep foliage at least 2 feet from an outdoor AC unit, per DOE, measured from the plant’s full-grown edge.
2. Can I put a fence around my AC unit?
Yes, if the fence around your AC unit is open-slatted, covers three sides at most, leaves the top open and sits 2 feet away.
3. Is it bad to cover an outdoor AC unit?
Never cover an AC unit while it runs; for winter, Goodman recommends dealer approval and breathable fabric only.
4. Does shading an AC unit save energy?
Barely. DOE cites up to 10%, but a Florida field study found shading an AC unit saved under 3%.
5. How much clearance does an AC unit need above it?
The current manuals we checked call for 48 inches to 5 feet of open space above an AC unit.
6. Can I build a deck over my AC unit?
Goodman requires 60 inches under any obstruction above an AC unit, and Trane wants 5 feet open. Have an HVAC contractor confirm clearances first.
7. What plants are safe near an AC unit if I have pets?
The ASPCA lists camellia as non-toxic and boxwood as toxic, so check every plant you put near an AC unit.
8. Can an AC unit sit under a roof overhang?
Keep overhangs out of the 5 feet Trane wants open above an AC unit, and keep roof runoff off it.
9. Do I need to keep space around the AC disconnect?
Yes. One city’s code handout requires 36 inches of clear space in front of an AC unit’s disconnect. Ask a licensed electrician to confirm your local rule.
10. Can I hide my AC unit inside a solid box?
No. A solid box blocks the airflow your AC unit needs, and blocked exhaust can loop hot air back in.
Your next step before you build anything
Find your model number, pull the installation manual and measure before buying a single plant or panel. Then keep the top and service side open, whatever you choose. While you’re at the condenser, find the right HVAC filter size for the indoor side too.
